Spout Pouches

Add Spouts on Your Customized Pouches

Want a smoother pouring experience? Then add a spout to your packaging!

For liquids, powders, and small granular items, spout pouches are the best packaging option. Compared to ziplock pouches, users don’t need to use both hands to open the zipper; just simply tilt the pouch towards the spout to pour the content. After use, screw the cap back on and confidently return it to the table.

With various types of caps, spout pouches can fulfill different functions, and we can also customize caps to match the pouch’s color scheme.

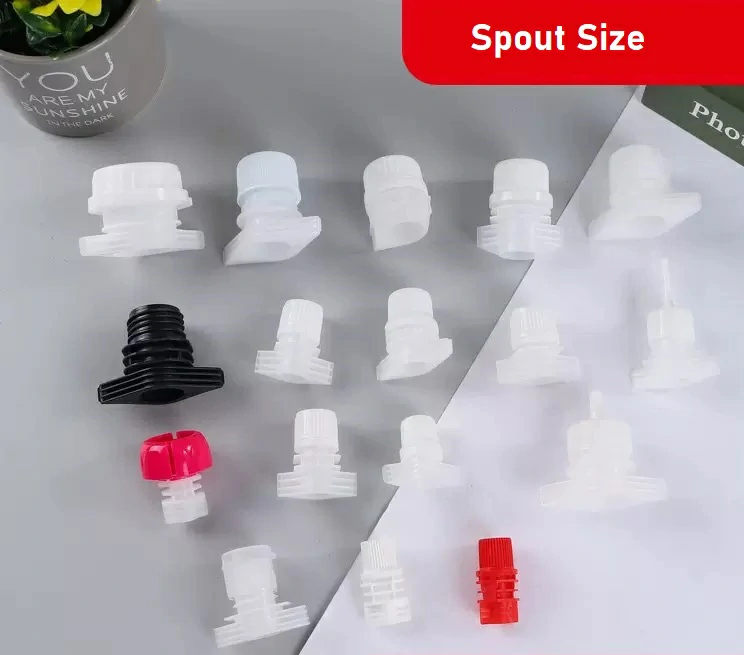

Different Sizes of Spouts

The table below lists the spout’s inner diameter, outer diameter, base width, and the required heat-sealing width.

Inner Diameter	Outer Diameter	Base Width	Heat Sealing Width
4mm	5.5mm	15mm	20mm
5mm	6.5mm	18mm	23mm
8mm	10mm	19mm	24mm
9mm	11mm	20mm	25mm
10mm	12mm	39mm	44mm
13mm	15mm	37mm	42mm
16mm	18mm	45mm	50mm
22mm	25mm	47mm	52mm
26mm	29mm	57mm	62mm

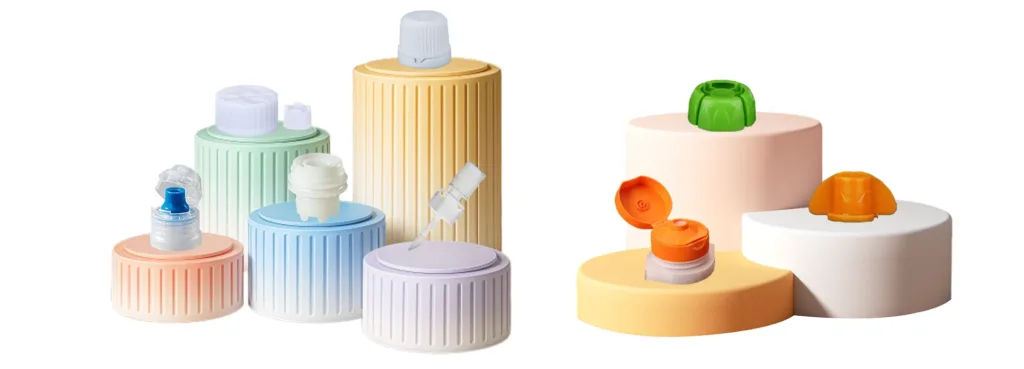

Different Types of Caps

Customizing the cap color to match the main color of the packaging bag can significantly enhance your packaging design.

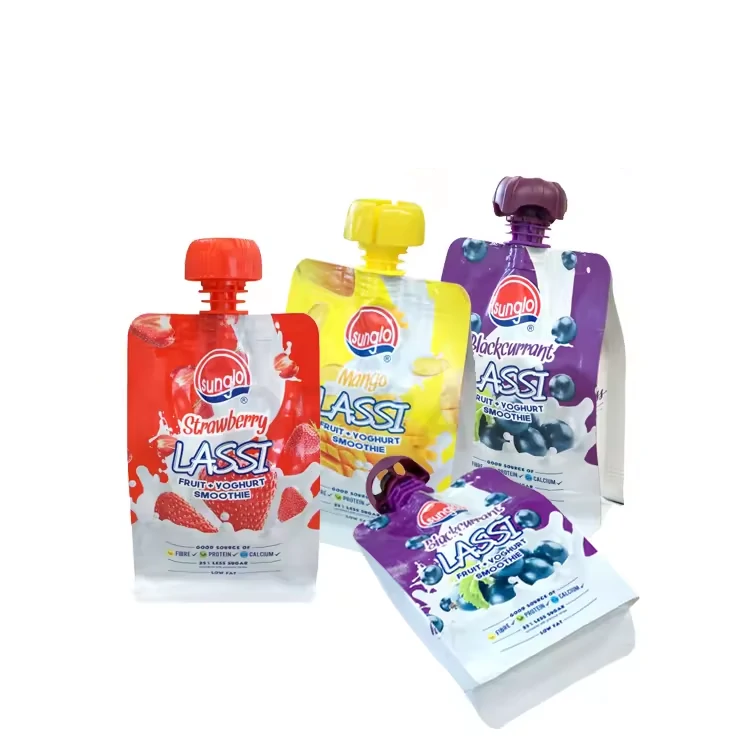

Customized Color Cap on Pouch

Customizing the cap color to match the main color of the packaging bag can significantly enhance your packaging design.

How to fill spout bags?

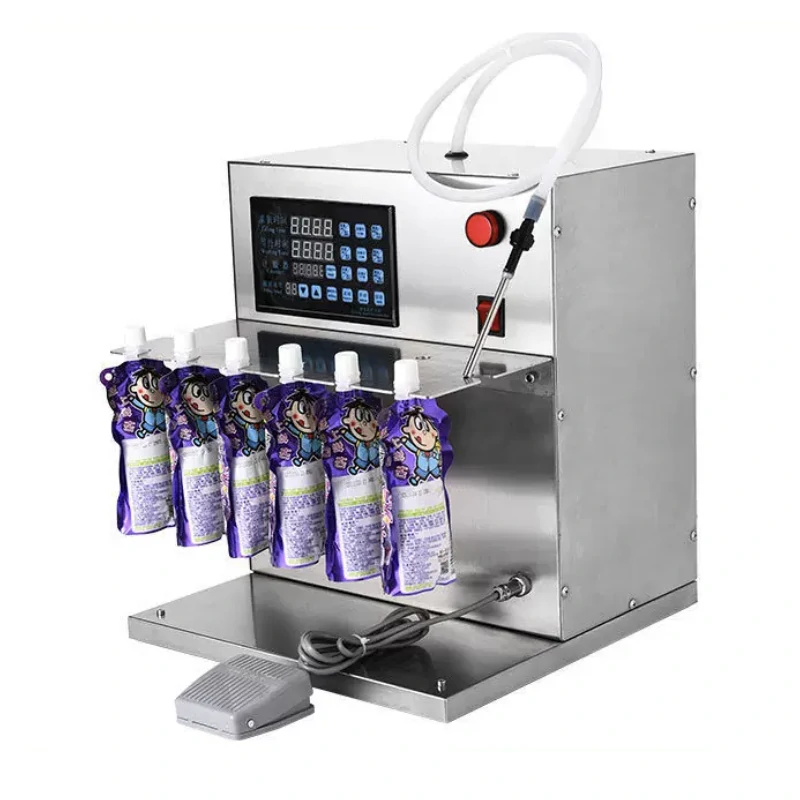

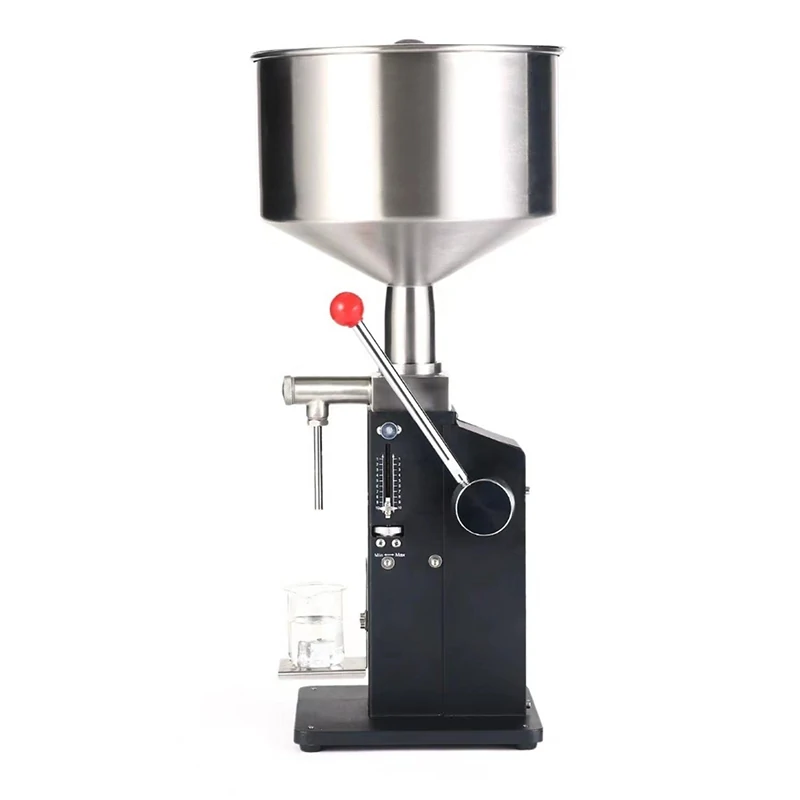

Method #1: From Spout Mannually

You can manually fill the container through the nozzle using a simple funnel or a semi-automatic machine. After filling, tighten the cap; the built-in lock on the cap will automatically lock it in place. This completes the filling process. Suitable for small-scale, low-volume businesses.

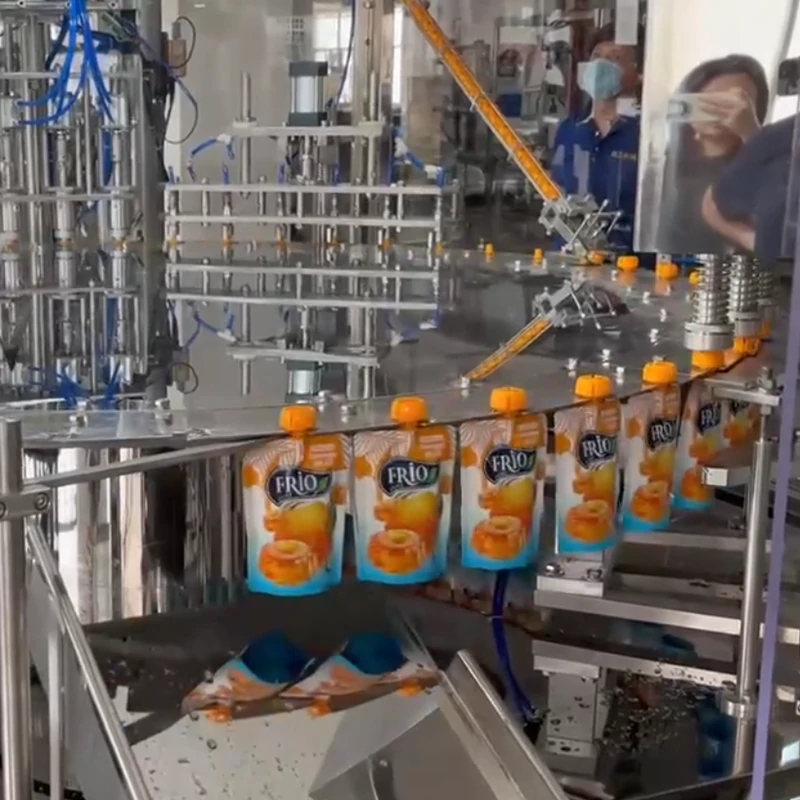

Method #2: From Spout by Machine

Machines can also be used for filling, but manual intervention is still required. Workers need to install the bags on the conveyor belt, and then the bags will be carried by the conveyor belt to the filling and capping area. Finally, the filled bags are moved by the conveyor belt to the collection area.

Method #3: From Pouches Openning

The packaging supplier can pre-tighten the caps before shipping, but leave an opening in the bag. This allows filling from the opening, followed by heat sealing using a heat sealing machine.

How to choose the material for the spout?

PP Spout

PP material is used as the inner layer material, making it more suitable for contact with oily foods and able to withstand high temperatures;

If the pouch inner heat sealing layer material is PP, then the spout material should also be PP

PE Spout

The nozzle material needs to match the material of the innermost heat-sealing layer of the packaging bag.

Under appropriate high-temperature heating, the nozzle will heat-seal together with the inner layer material, forming a strong structure that prevents leakage or damage.

Modified materials Spout

Sometimes, spout pouches need to store corrosive liquids, such as lemon juice, cosmetics, and chemicals. Using spouts made of conventional materials can cause significant problems; the liquid can corrode the spout, leading to leaks and even the release of harmful substances. In such cases, corrosion-resistant spout materials are necessary.

Pouch Customization Options

Choose the best flexible bag style that suits your product needs. Our flexible packaging solutions are not just containers; they are powerful advertisements that communicate your brand’s message effectively.

Printing Method

Makepac can do digital, flexo and gravure printing options depending on your requirements.

View All Options

Material

MakePac Offer various kinds of choices: transparent, aluminum foil, kraft paper, recycable or others.

View All Options

Configurations

Choose the most suitable custom packaging bag for your product. We offer all styles.

View All Options

Finishing

Making your packaging bags more attractive and visually appealing is definitely a good choice.

View All Options

Custom Spout Pouches in Different Industry

Custom pouches work well across many industries and product lines.

Whether you serve the healthcare sector, retail markets or other fields, we can customise these bags to fit your exact business requirements.

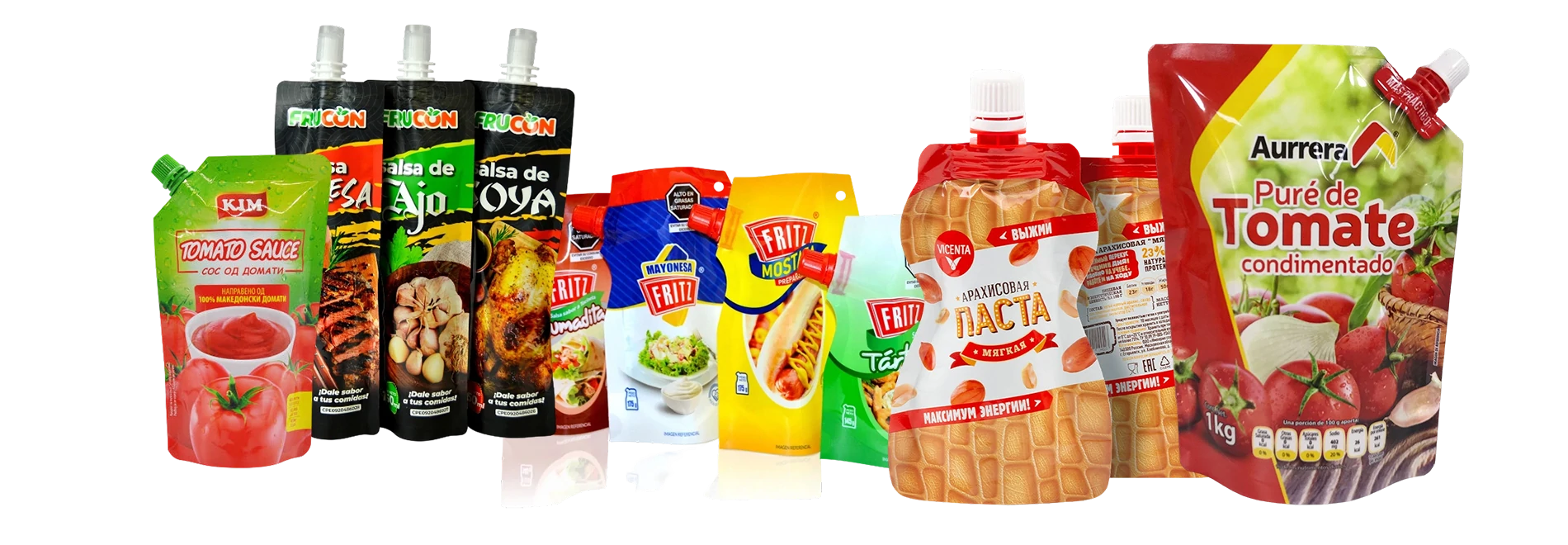

Spouts on Sauce Pouches

Spouted pouches hold all kinds of cooking sauces neatly. Tilt the pack to squeeze out condiment easily, and twist the cap tight to lock leftover paste fresh for repeated kitchen use.

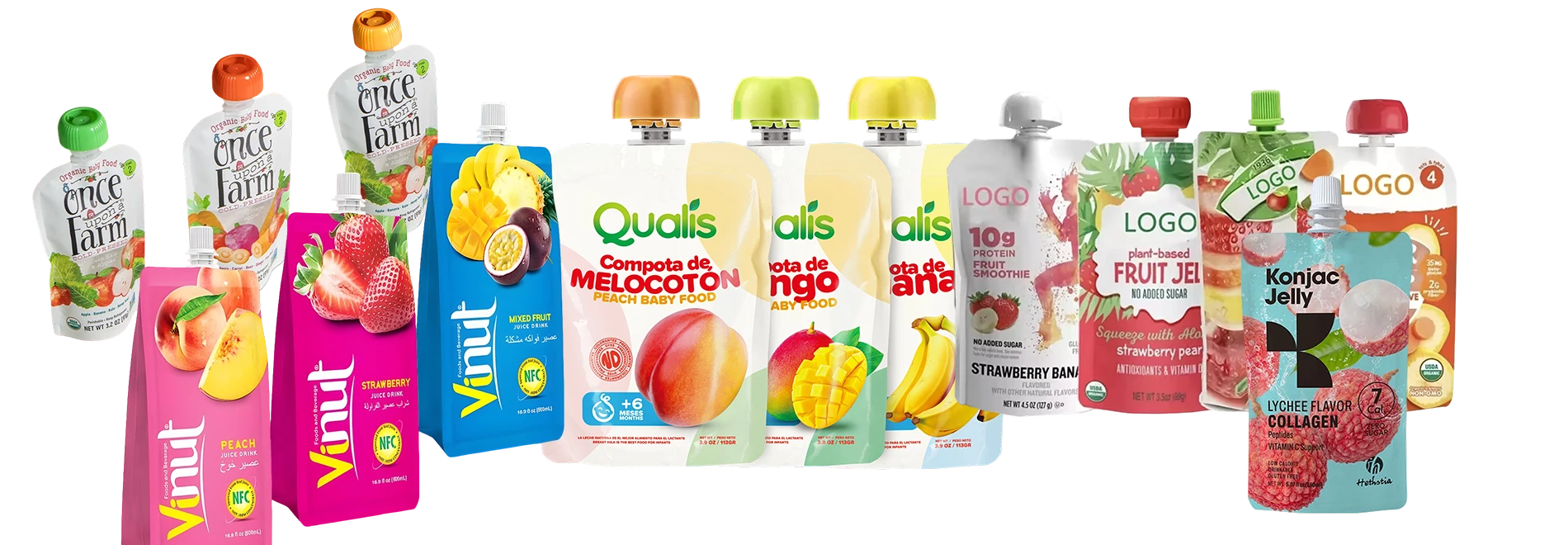

Spouts on Jelly Bag

Small spouted bags fit portable jelly snacks for kids. The sealed cap stops sweet jelly liquid leaking out during walks, letting little ones sip treats without messy spills everywhere.

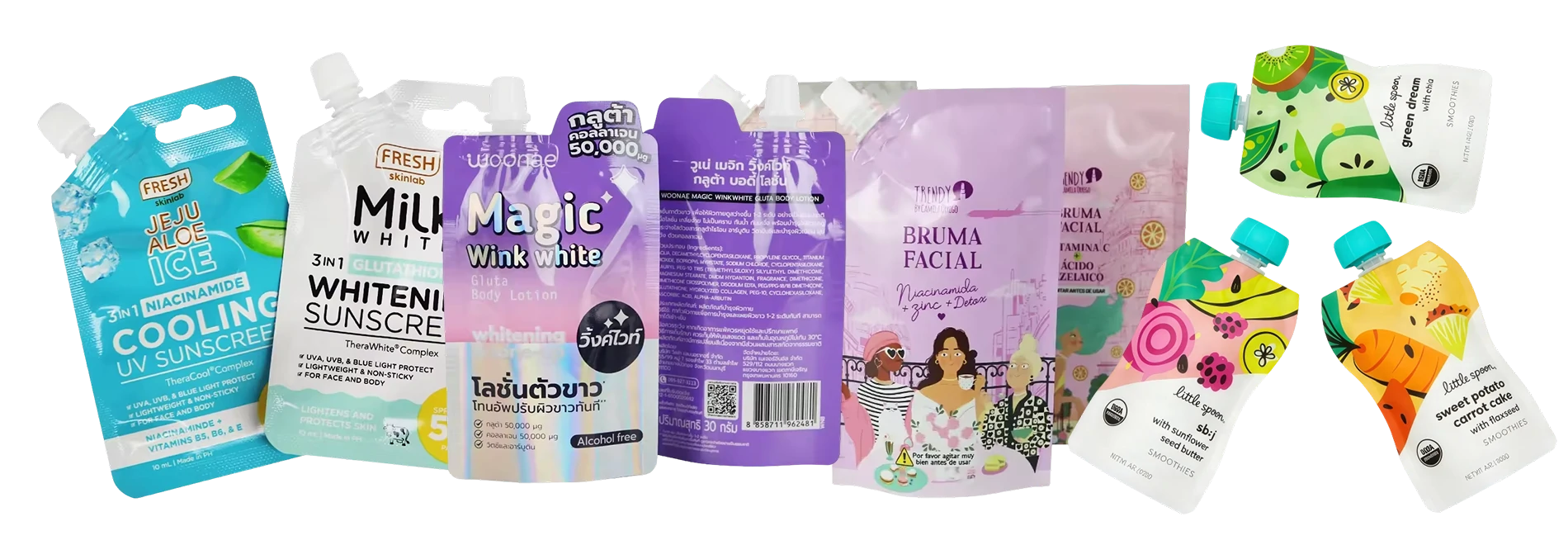

Spouts on Cosmetic Bags

Soft spouted pouches carry liquid skincare creams and serums. Controlled squeeze via the spout releases just enough product, with lids blocking air to preserve cosmetic quality long term.

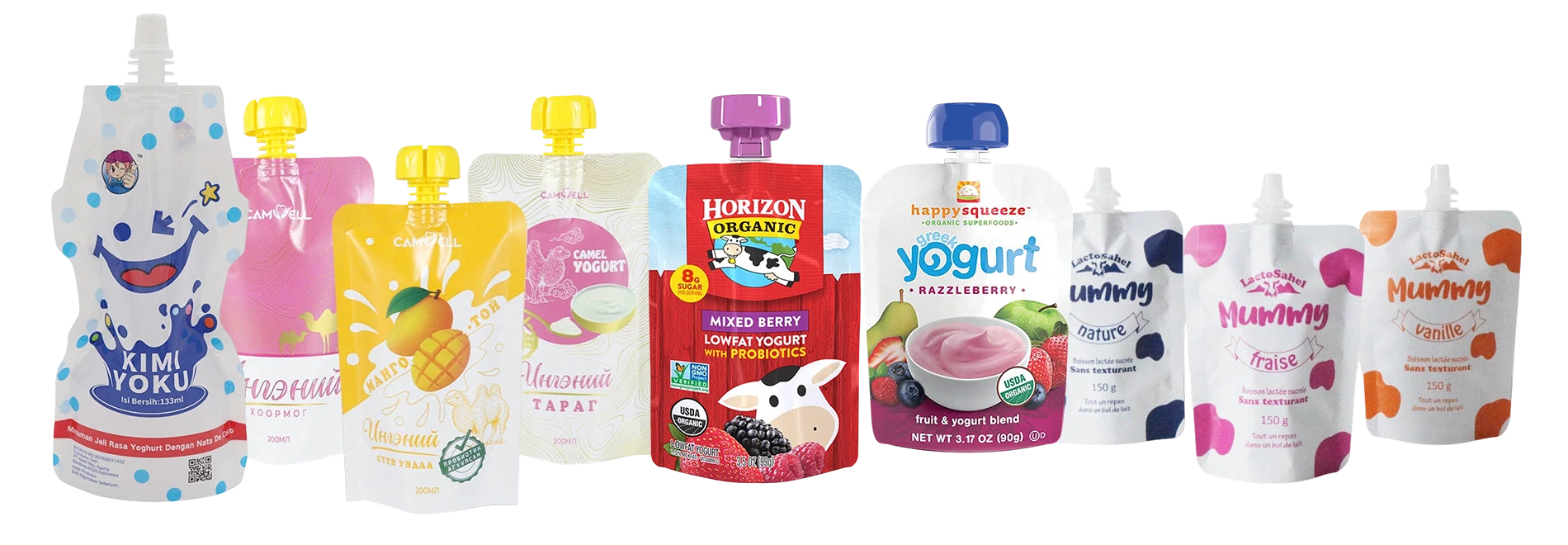

Spout on Yogurt Bags

Light spouted pouches store drinking yogurt for daily refreshment. Users sip yogurt straight from the nozzle; closed caps keep remaining yogurt tasty and free from outside dust.
